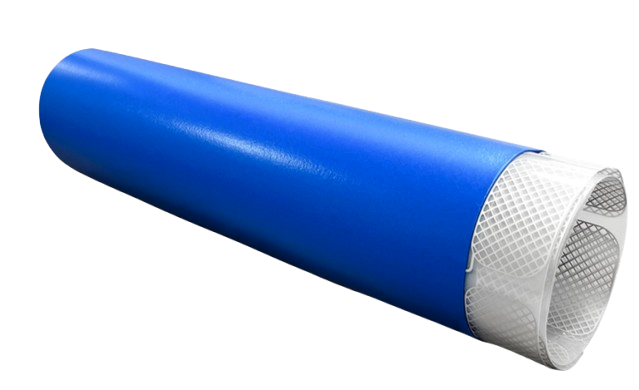

SmartStep Flooring Underlayment
Advanced intelligent flooring system with integrated sensing technology for real-time activity monitoring and analytics.
Compatible Flooring Solutions
Our smart underlayment seamlessly integrates with multiple flooring types, providing enhanced performance and analytics capabilities regardless of your chosen finish.

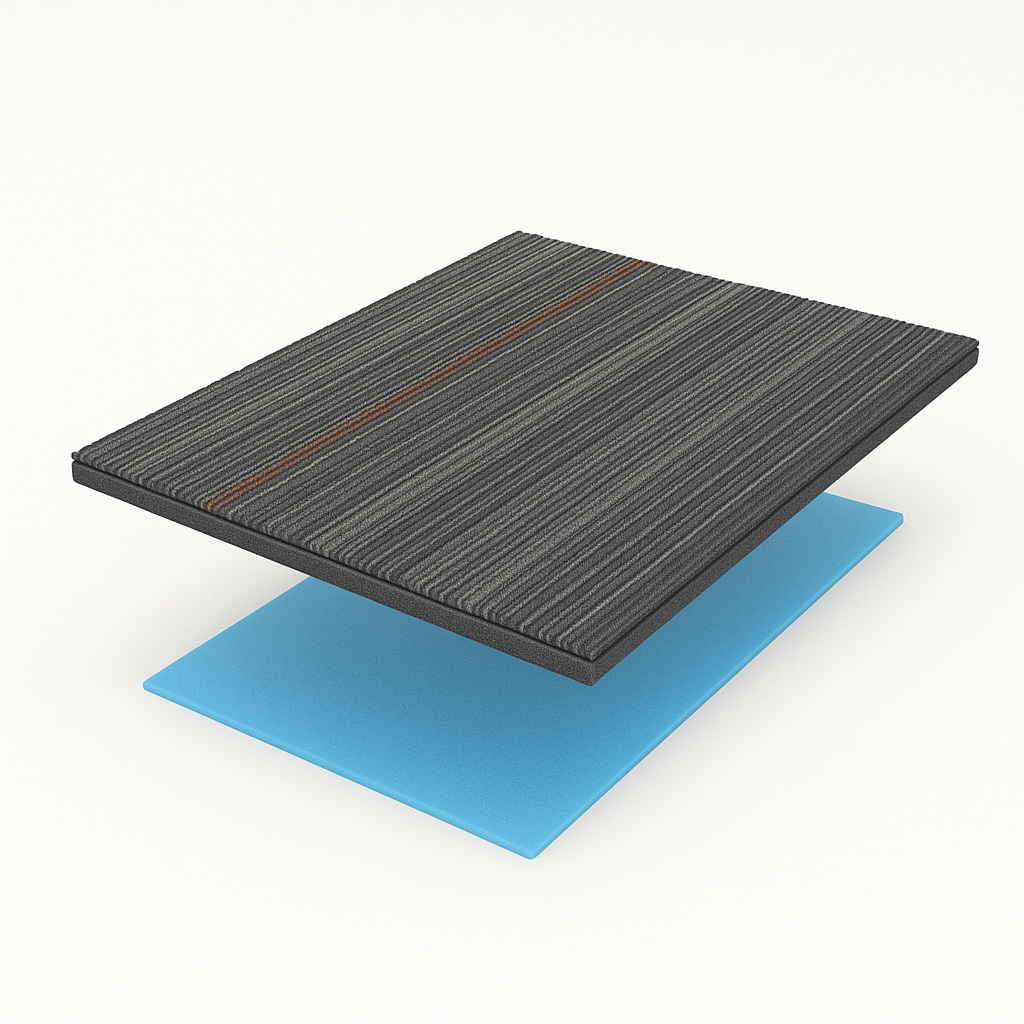

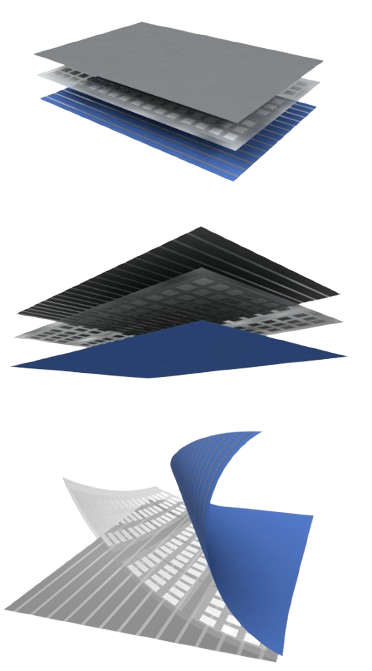

Carpet Tile

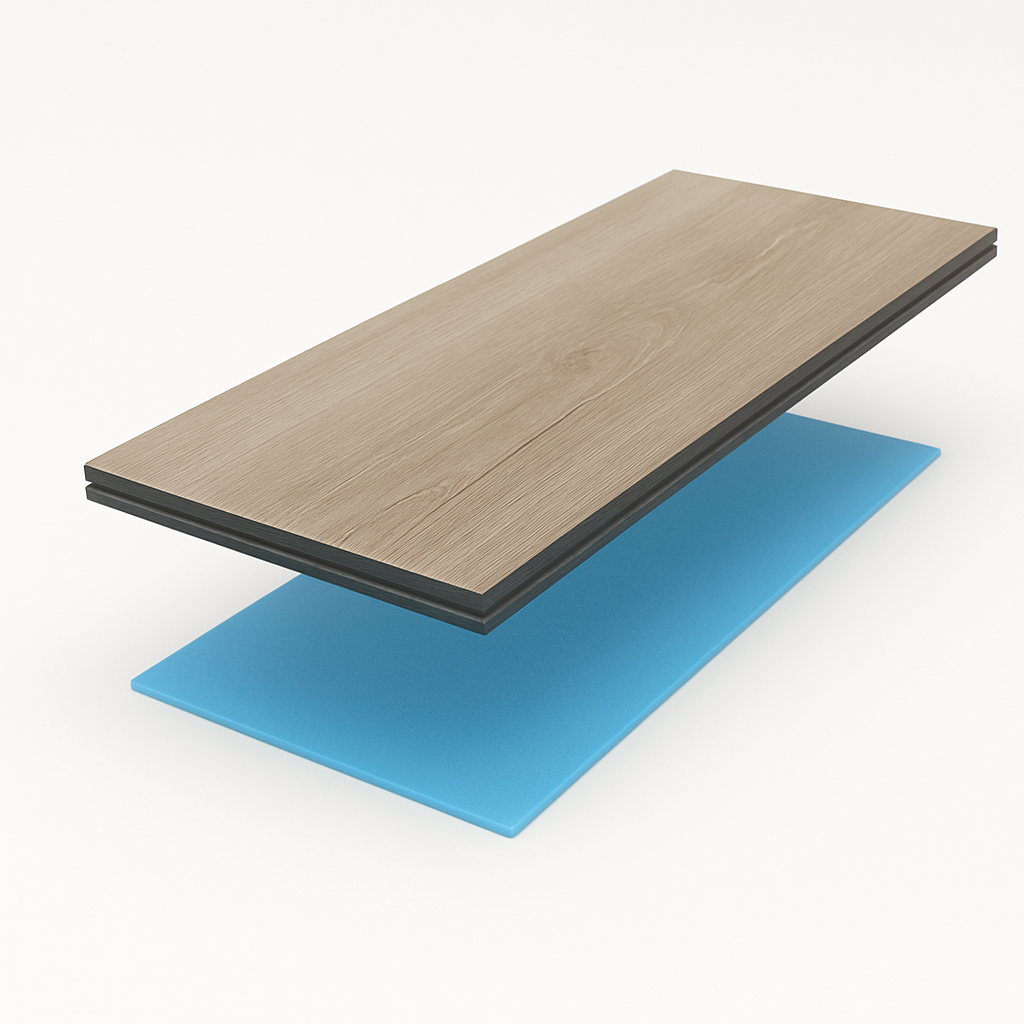

Luxury Vinyl Tile

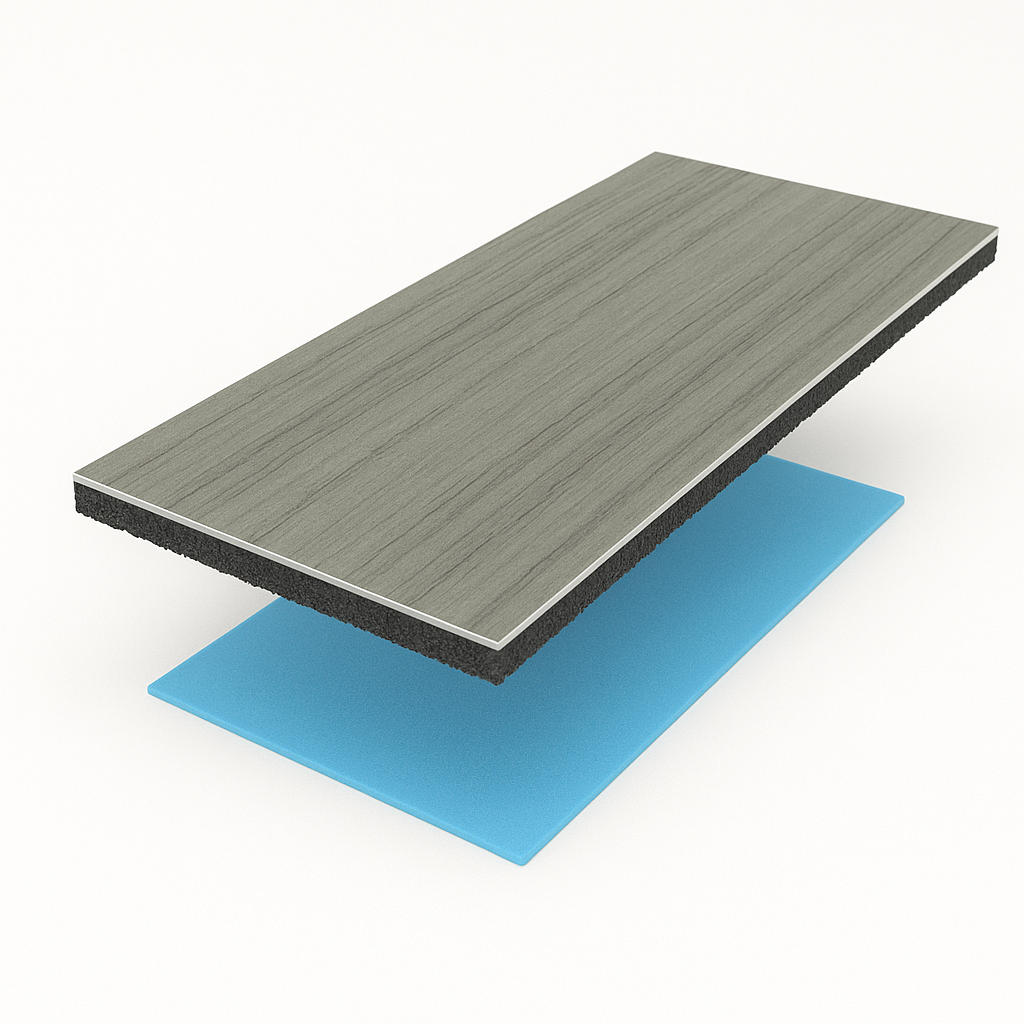

Rubber Backed Flooring
Key Benefits
- •Seamless integration with all major commercial flooring types
- •No impact on flooring warranty or performance
- •Enhanced acoustic and thermal properties
- •Maintains accurate sensing through all supported surfaces
Product Specifications
Certifications and Testing
Our smart flooring underlayment meets rigorous industry standards and testing requirements, ensuring quality, safety, and optimal performance for your installation.
Material
Cross Linked Polypropylene Foam
Color
Blue
Density
6 +/-10% lb/ft3
Thickness
1.1 +/- 10% mm
25% Compressive Strength
> 40 psi
MVTR
0.2 lbs / 1000ft² - 24hrs
R-Value (per inch)
4.1 ft²-F-Hr / BTU
Flammability
Class A
VOCs
Pass, FloorScore Certified
Performance
Our smart flooring underlayment maintains exceptional performance even when faced with real-world challenges like post-installation damage.
Resilient to Damage

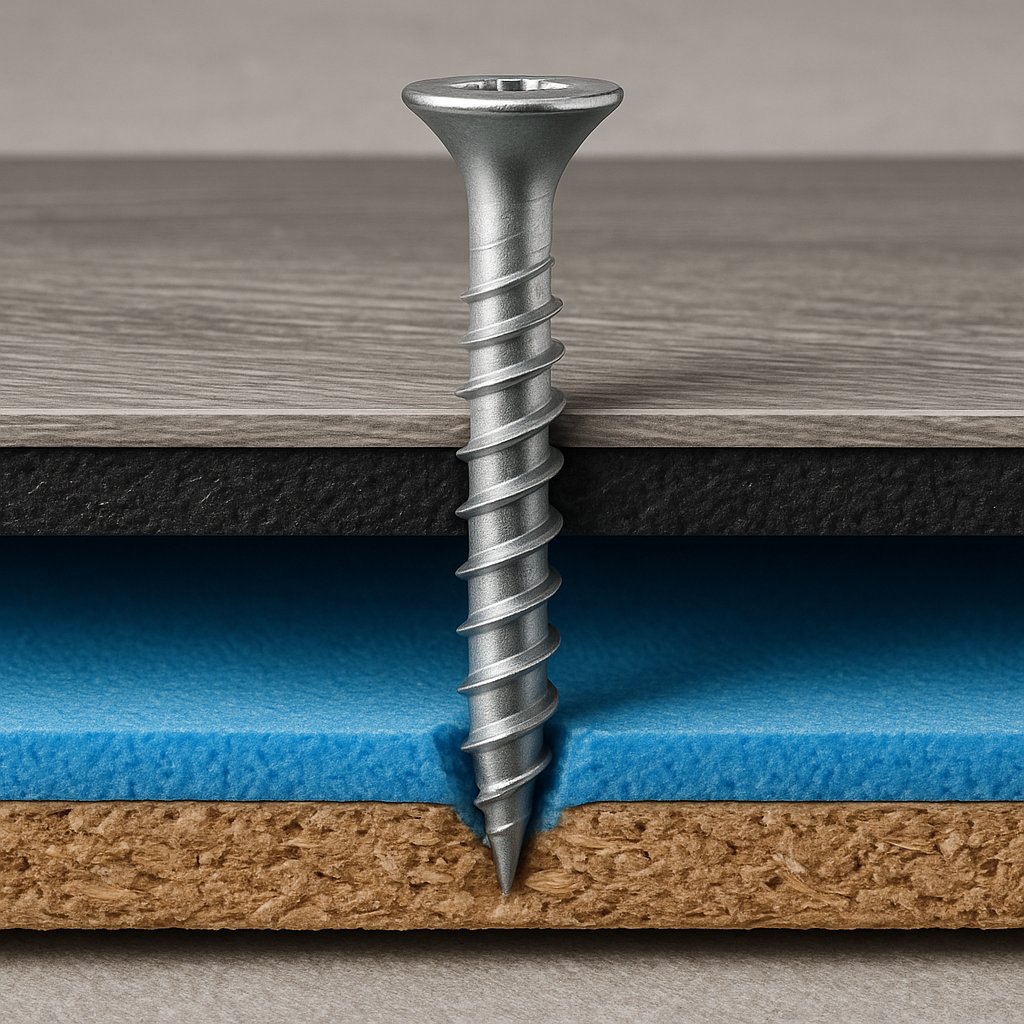

In real-world environments, floors can be subjected to damage from screws, nails, and other penetrating objects during installation or maintenance.

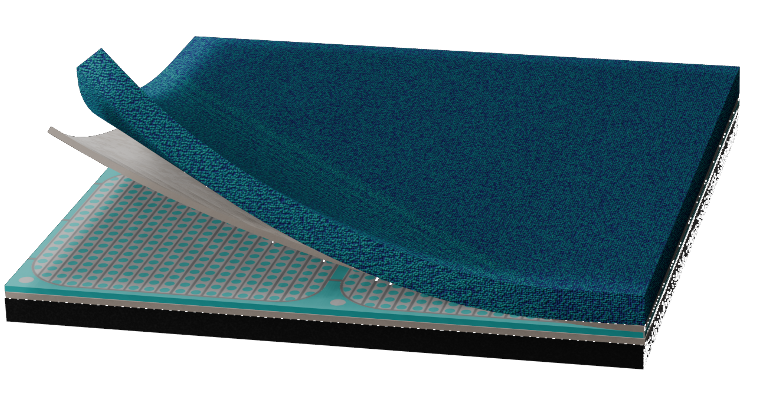

Our sensor underlayment is designed with a modular architecture where each 4" pixel functions as an individual sensor, creating a robust system that continues to operate normally even when damaged.
When a screw or nail penetrates the floor and underlayment, it may only affect a single pixel, leaving the functionality of the entire system intact.
Minimal Impact
Our unique design isolates damage to individual pixels, ensuring that the overall system continues to function optimally even if multiple pixels are compromised.
The intelligent software automatically compensates for any damaged pixels, providing continuous monitoring and analysis without interruption to your operations.
- ✓Individual 4" pixel architecture
- ✓Software continues normal operation with damaged pixels
- ✓No impact on overall system reliability
Installation Guide
Follow these guidelines to ensure proper installation and optimal performance of your SmartStep flooring underlayment system.
Before You Begin
Proper installation of your SmartStep flooring underlayment is crucial for ensuring optimal sensor performance and longevity. Our smart flooring must be installed following these guidelines to maintain warranty coverage and achieve desired functionality.
Always check the SmartStep underlayment to ensure it is undamaged before starting and confirm you have sufficient material to complete the installation.
Storage and Handling
↓Job Site Conditions
↓Structural Requirements
↓Custom Fitting

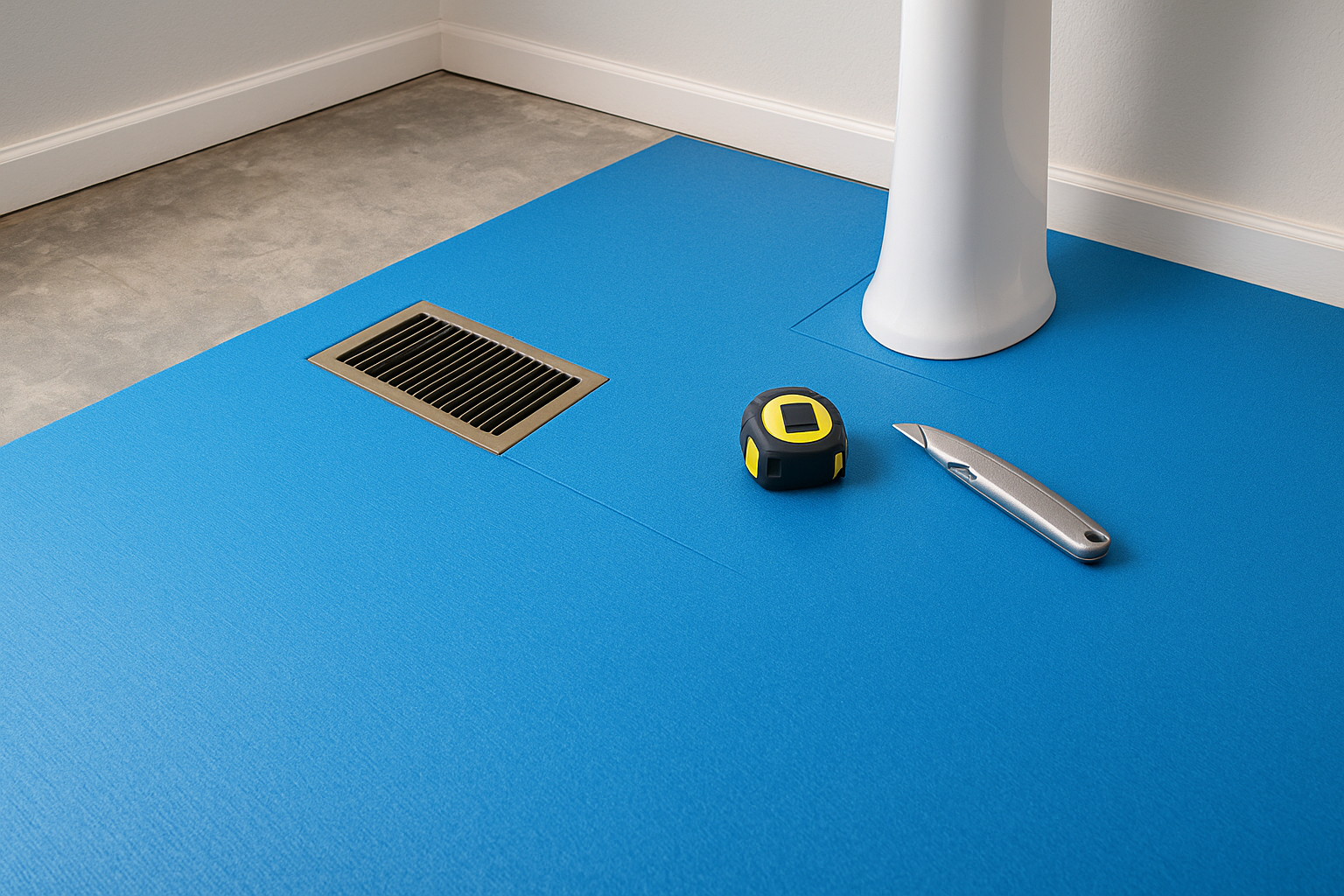

SmartStep underlayment can be cut to fit any room shape or size, just like traditional underlayment materials. Our innovative design allows for customization without compromising sensor functionality or performance.
When cutting the underlayment to shape, you're simply modifying the sensor grid to match your specific installation requirements. The system automatically adjusts to the new layout, ensuring seamless operation.
- ✓Cut around obstacles and architectural features
- ✓Easily shape to fit irregular room layouts
- ✓No impact on overall system performance
Need Detailed Installation Instructions?
For comprehensive installation guidelines, you can download our complete documentation or contact our technical support team for assistance.
Download Resources
Access our complete product documentation including specification sheets, installation guides, and certification details.
Technical Specification Sheet
Complete product specifications, dimensions, and technical requirements
Installation Guide
Step-by-step instructions for proper installation and setup
Compliance Certificate Package
Full documentation of all certifications and compliance standards
Need custom specifications?
Contact our team to request customized product specifications for your specific project needs.
Contact Sales Team
